How to navigate the Routing Summary

The Routing Summary shows cargo counts for each route, with totals for units, weight, special handling and size. You can export each table to Excel.

Open the report

1. In the Function Menu on the left, click Analytics.
2. Click Route Summary. The Routing Summary Tables page opens.

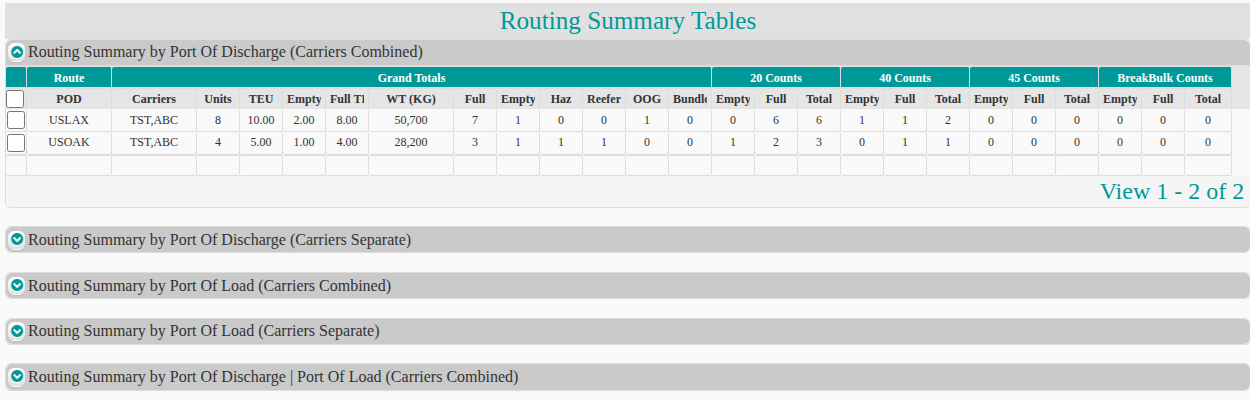

The page has several tables. Only the first one is open. The names show the grouping and whether carriers are shown together or apart:

• Routing Summary by Port Of Discharge (Carriers Combined)
• Routing Summary by Port Of Discharge (Carriers Separate)
• Routing Summary by Port Of Load (Carriers Combined)
• Routing Summary by Port Of Load (Carriers Separate)
• Routing Summary by Port Of Discharge | Port Of Load (Carriers Combined)
• More tables, as the export options below show.

Use the tables

1. Click the green button next to a table name to show or hide the table.
2. To see more columns (for example the BreakBulk Counts), scroll the table from left to right. The scroll bar shows when the screen is too narrow.
3. To change the width of a column, drag the edge of the column with your mouse.

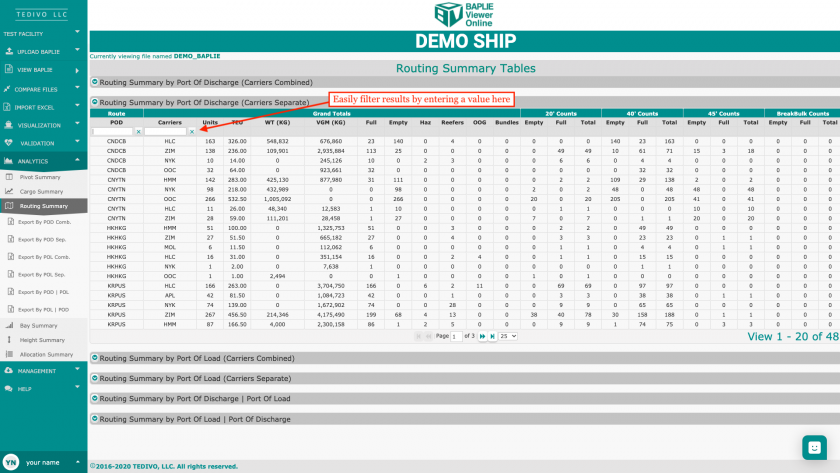

4. In the Carriers Separate tables, you can filter the results. Type a value in the POD or POL column, or in the Carrier column. Click the x to remove the filter.

5. Click a row to highlight it. To total values, click the box at the top left of the table to total all columns. Or click single columns to total only those columns.

Note: below each table, the text View 1 - 2 of 2 shows how many rows the table has.

Export a table

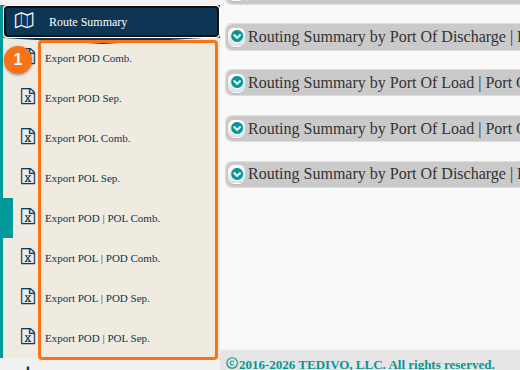

1. In the Function Menu, under Route Summary, find the export options (1 in the picture). Each name starts with Export and ends with Comb. (carriers combined) or Sep. (carriers separate): POD Comb., POD Sep., POL Comb., POL Sep., POD | POL Comb., POL | POD Comb., POL | POD Sep. and POD | POL Sep. POD is port of discharge. POL is port of load.
2. Click the name of a table. An .xls file downloads.
